From Concept to Certification
Metrological Design

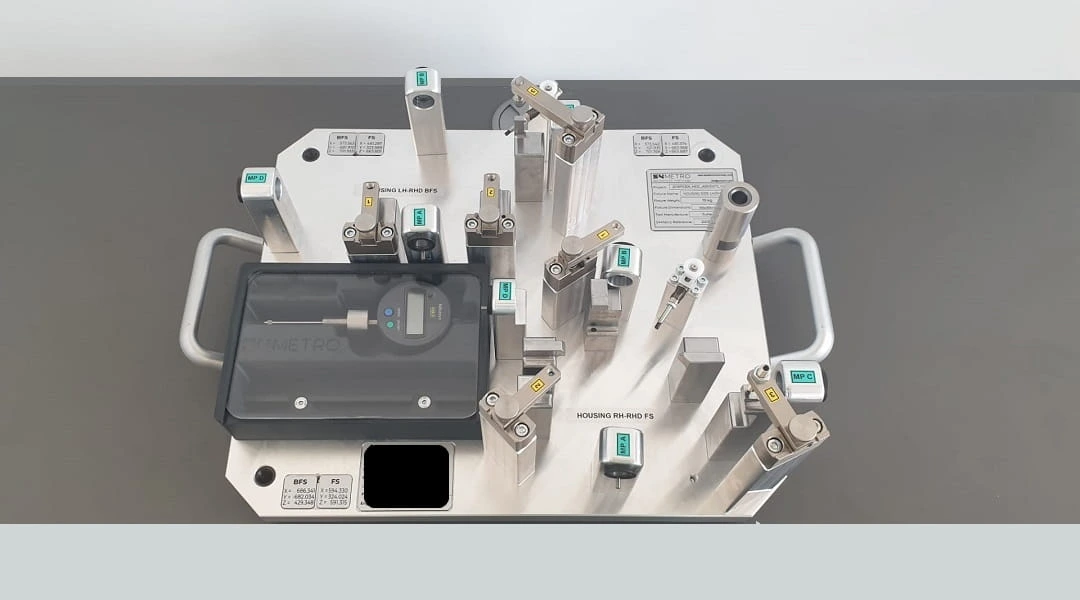

3D development focused on full access to critical measurement areas, ensuring correct part orientation without inducing mechanical deformations.
Manufacturing and Robustness

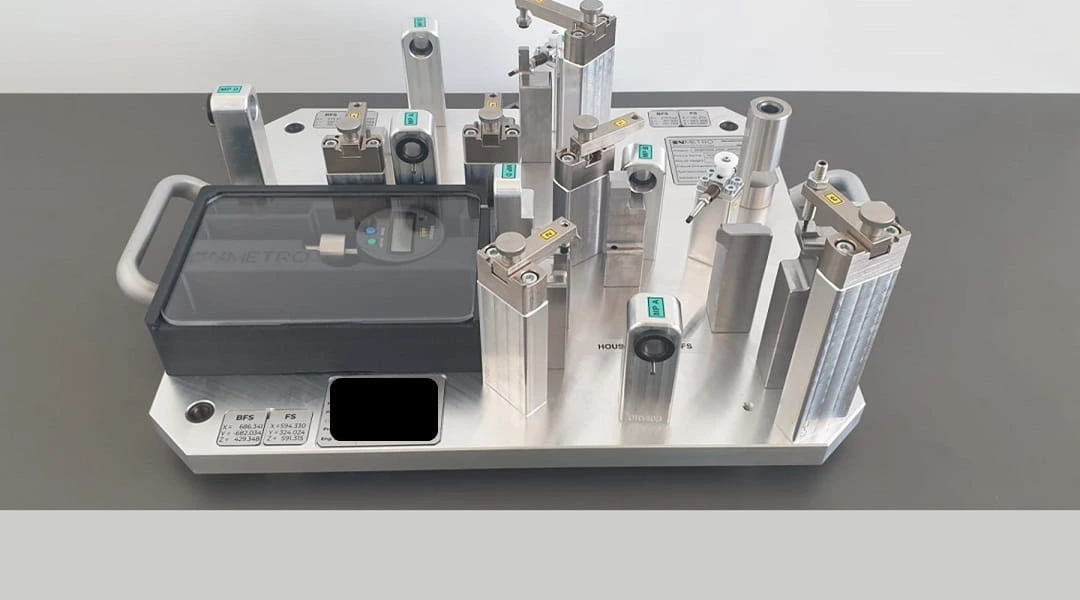

Construction with high thermal stability materials and fast clamping systems prepared to withstand the aggressive shop floor environment.
Internal Certification
No device is delivered blind. All gauges are dimensionally validated on our CMMs and delivered with their traceability report.
Total Integration with CMM & 3D Scanning

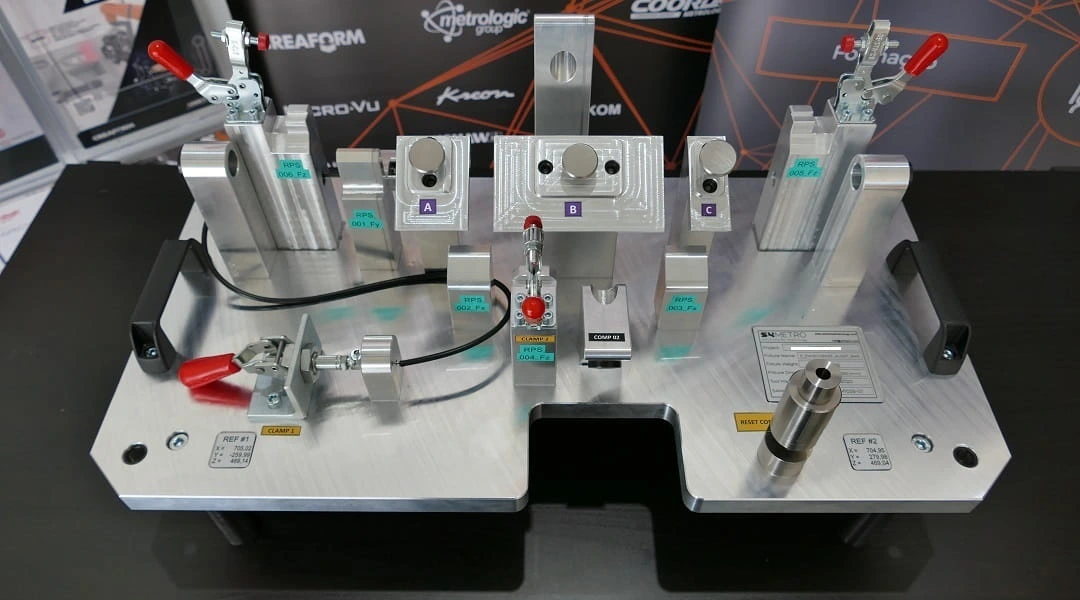

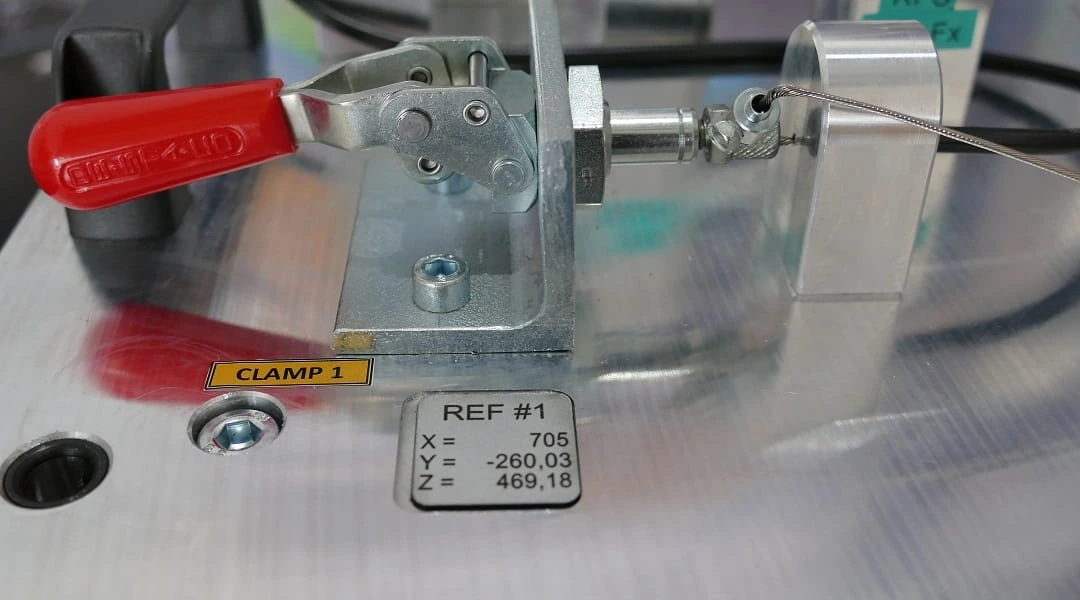

Our Fixing Jigs are not just for manual Go/No-Go validation. They are natively designed to ensure perfect and repeatable referencing (RPS) on Coordinate Measuring Machines (CMM) or optical scanning systems, allowing you to automate your quality control.
Perguntas Frequentes
A Fixing Jig is primarily intended to support and guide the part repeatably for measurement processes (CMM/Scanner), welding, or machining. A Checking Fixture goes further, incorporating direct control elements (go/no-go pins, dial gauges) to validate geometric tolerances in-situ.
Yes. This is S4METRO's great differentiator. Metrology is in our DNA. All devices are rigorously inspected in our laboratory before delivery, accompanied by a dimensional certification report.
Yes, we carry out turnkey projects. Based on the CAD model of your part and the technical drawing with GD&T, our engineering designs the fixturing, selects the appropriate materials and approves the project with you before proceeding to manufacturing.
